OBDSTAR MarineMaster A+B Marine Diagnostic Tool Scanner for Jet ski, Outboard
- Regular
- $3,466.00
- Sale
- $3,466.00
- Regular
- Unit Price
- per
This Configuration Covers
Jet Ski (A)
Outboard (B)
MarineMaster Configurations — Which One Do You Need?
MarineMaster A+B
Jet Ski + Outboard
✅ This listingMarineMaster C+D
Inboard + Generator
MarineMaster A+B+C+D
All four — Jet Ski + Outboard + Inboard + Generator
Key Features
Full Marine Diagnostics
ECU info, code reading/clearing, data flow, freeze frames, action test, setting, coding, working hours, Helm Setup
One-Click OTA Update
Android 11 with one-click Over-The-Air updates via Wi-Fi — always current for 2 years free
Live Data Recording
Record and play back real-time data flow — text, waveform and instrument diagram display modes
Screen Recording & Mirroring
Built-in screen recording and wireless screen mirroring — share diagnostics wirelessly
Remote Support
One-click remote access — OBDSTAR technicians can assist directly via the device
16 Adapter Cables Included
Brand-specific adapters for Kawasaki, Honda, Parsun, BRP, Mercury, Yamaha, Suzuki, Tohatsu, Evinrude and more
Hardware Configuration
8" Sunlight
1280×800 Laminated
2.0GHz 64-bit
Quad-core Cortex-A55
4GB + 64GB
RAM + Storage
9,000mAh
Battery
800W px Rear
Auto-focus Camera
Dual-band Wi-Fi
2.4GHz + 5GHz
Bluetooth 5.0
Wireless
RJ45 / HDMI
Type-A + Type-C
VCI Protocol Support
CAN-FD Built-in
Next-generation CAN Flexible Data-rate protocol — supports newer marine ECUs
DoIP Built-in
Diagnostics over Internet Protocol — for modern ethernet-connected marine systems
Low Speed (Fault Tolerant) CAN
Built-in support for fault-tolerant CAN bus used in older marine engines
All Common Protocols
CAN, EOBD, OBD, OBD II and all other common marine diagnostic protocol types
⚙️ Advanced Functions
- OBDSTAR mobile APP integration — diag socket location, flash code query, technical bulletin, service lamp reset, basic parameters
- Exclusive interactive wiring diagram and electrical appliance description query
- Multiple live data display modes — text, waveform diagram, instrument diagram
- Auto Scan, BCM Simulator, Instance Setting, Maintenance Setting
- Remote Control Reset, System Calibration, Torque Adjustment
Supported Brands — MarineMaster A+B (Jet Ski & Outboard)
| Brand | Marine Diag | Marine Demo | Marine IMMO | ECU Flasher |
|---|---|---|---|---|
| YAMAHA | ✓ | ✓ | ✓ | — |
| SUZUKI | ✓ | ✓ | — | — |
| SEA-DOO (BRP) | ✓ | — | ✓ | — |
| MERCURY | ✓ | ✓ | — | — |
| HONDA | ✓ | ✓ | — | — |
| KAWASAKI | ✓ | — | ✓ | — |
| TOHATSU | ✓ | — | — | — |
| EVINRUDE | ✓ | — | — | — |
| HIDEA | ✓ | — | — | — |
| JOHNSON | ✓ | — | — | — |
| MARINER | ✓ | — | — | — |
| PARSUN | ✓ | — | — | — |
| SELVA | ✓ | — | — | — |
| SEANOVO | ✓ | — | — | — |
| SEVEN | ✓ | — | — | — |
| AIQIDI | ✓ | — | — | — |
| ECM (ECU Flasher) | — | — | — | ✓ |

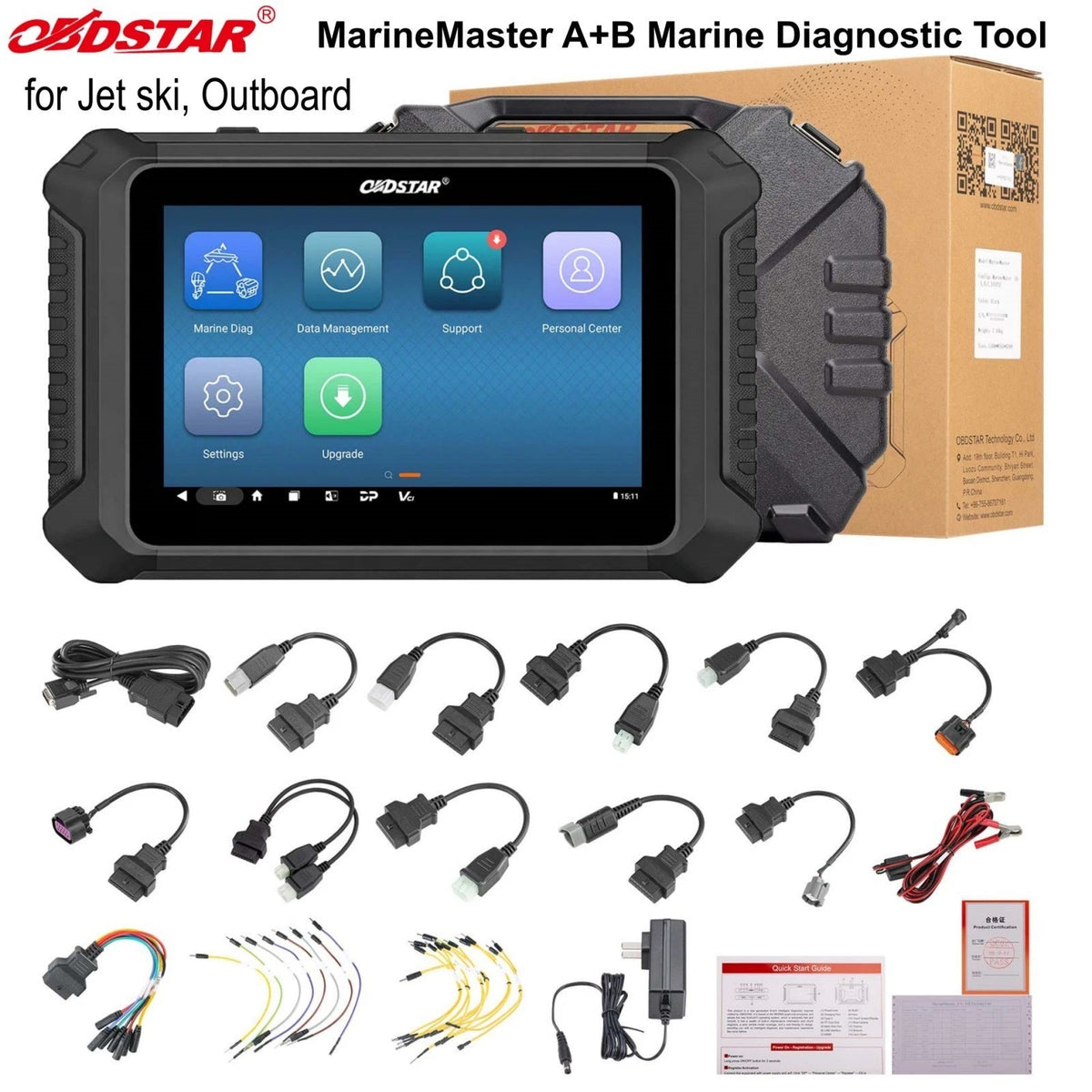

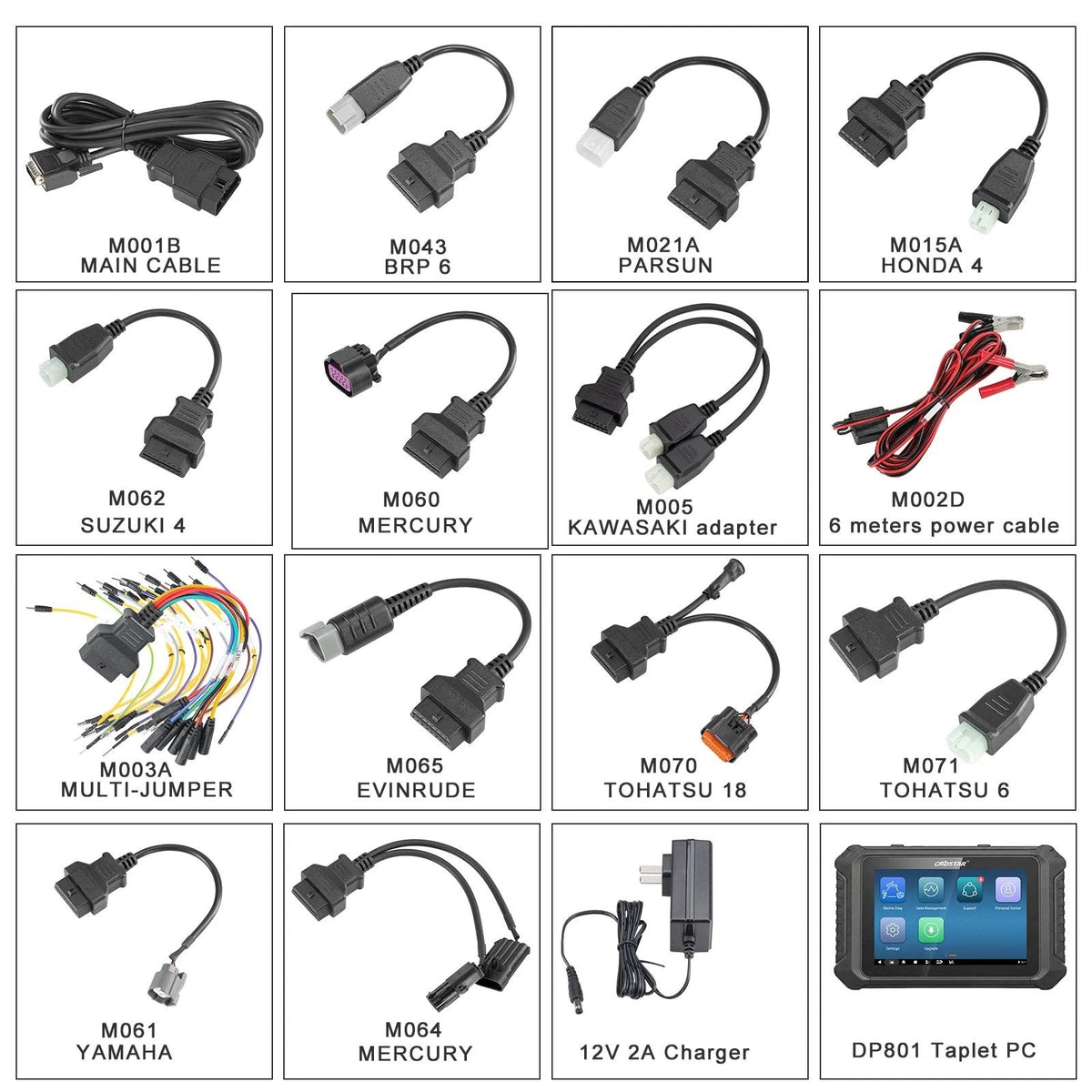

What's in the Box
- 1× MarineMaster A+B Tablet
- 1× 12V 2A Charger Adapter
- 1× M001B Main Cable
- 1× M002D 6-Metre Power Cable
- 1× M003A Multi-functional Jumper
- 1× M005 Kawasaki Adapter
- 1× M015A Honda Adapter
- 1× M021A Parsun Adapter
- 1× M043 BRP / Sea-Doo Adapter
- 1× M060 Mercury Adapter
- 1× M061 Yamaha Adapter
- 1× M062 Suzuki Adapter
- 1× M064 Mercury Adapter (variant)
- 1× M065 Evinrude Adapter
- 1× M070 Tohatsu Adapter
- 1× M071 Tohatsu Adapter (variant)
Technical Specifications
| Configuration | MarineMaster A+B — Jet Ski + Outboard |
| Operating System | Android 11 |
| CPU | Quad-core 64-bit Cortex-A55 2.0GHz (Samsung Exynos) |
| RAM + Storage | 4GB + 64GB |
| Display | 8.0-inch fully laminated sunlight-readable screen, 1280×800 |
| Battery | 9,000mAh |
| Camera | Rear 800W pixel, auto-focus |
| Bluetooth | Bluetooth 5.0 |
| Wi-Fi | Dual-band 2.4GHz / 5GHz |
| External Interfaces | RJ-45, HDMI, Type-A, Type-C |
| VCI Protocols | CAN-FD, DoIP, Low Speed CAN, CAN, EOBD, OBD, OBD II and all common protocols |
| OTA Updates | One-click Wi-Fi OTA — 2 years free |
| Screen Recording | Built-in |
| Wireless Screen Mirroring | Built-in |
| Remote Support | One-click OBDSTAR remote assistance |
| Language | English only |
| Warranty | 1 Year |
| Part Number | A01SP627-B |
Before You Buy – Important Information
- This is the A+B configuration — covers Jet Ski and Outboard engines only
- For Inboard or Generator coverage, you need the C+D or A+B+C+D configuration
- Includes 2 years of free OTA software updates — no subscription during this period
- This device supports English language only — the language cannot be changed
- Includes 16 brand-specific adapter cables for Yamaha, Suzuki, Mercury, BRP, Honda, Kawasaki, Tohatsu and Evinrude
- Compatibility may vary by model year — contact us with your engine details to confirm before purchasing
