TOPDON Artidiag 600S Diagnostic Scan Tool
- Regular
- $352.00
- Sale
- $352.00
- Regular
- Unit Price
- per
🔌 CAN-FD Protocol Support — Modern Vehicle Coverage
The ArtiDiag 600S supports CAN-FD (Controller Area Network Flexible Data-rate) — the next-generation vehicle communication protocol used in GM, Chrysler and Fiat models from 2020 onwards. This enables faster, more comprehensive diagnostics on newer vehicles that older OBD2 tools cannot fully access.
Key Features
4 System Diagnostics
Engine, Transmission, Airbag and ABS — full diagnostics across 80+ vehicle brands

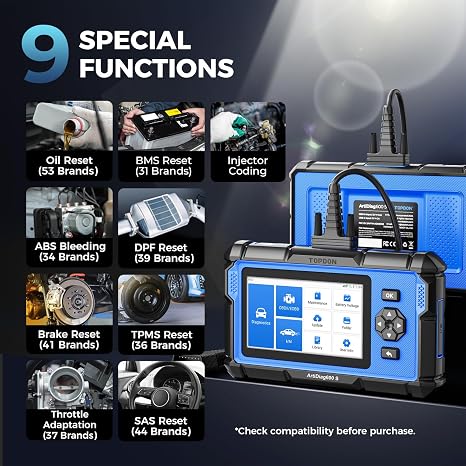

9 Reset Functions
Oil, Brake, SAS, BMS, Injector Coding, DPF, ETS, TPMS and ABS Bleeding
CAN-FD Support
Full access to GM, Chrysler and Fiat 2020+ vehicles via CAN-FD protocol
AutoVIN Technology
Instantly identifies vehicle — no manual entry, start diagnostics immediately
4 Live Data Streams
Display up to 4 data streams simultaneously for accurate system comparison
Lifetime Free Updates
One-tap Wi-Fi updates — always current, always free, no annual subscription
One-Tap Clear All
Clear all codes across all systems in one tap from the Health Report interface
Auto Diagnostic Report
Automatically generates and shares diagnostic reports electronically
Hardware Configuration
5" LCD
480×854 Display
1.3GHz 4-Core
CPU — Android 6.0
1GB / 16GB
RAM / Storage
1500mAh
3.7V Battery
1200mm
Cable Length
630g
Net Weight
4 System Diagnostics — 80+ Vehicle Brands
Engine System (ECM)
Read and clear engine fault codes, identify check engine light cause, view live data stream and emissions parameters
Transmission System
Diagnose automatic transmission faults, read codes and view live data to verify speed and load performance
Airbag System (SRS)
Read, clear and diagnose airbag and safety restraint system faults to ensure passenger safety
ABS — Anti-Lock Brake
Retrieve ABS fault codes, monitor live data and perform ABS bleeding for safe and consistent braking
9 Maintenance Reset Functions
Live Data, Recording & Reporting
4 Simultaneous Data Streams
Display up to 4 live data streams at once for clear, side-by-side comparison of different system parameters and accurate fault analysis
Dynamic Data Recording
Record live data streams for playback at any time — review and compare historical data to identify intermittent faults
Auto Diagnostic Reports
Automatically generates a full diagnostic report after scanning — share electronically with customers or team members instantly
Quick Feedback Function
Submit issues and requests directly to TOPDON technical support from the device — reduce downtime and get faster resolutions
Technical Specifications
| Display | 5-inch LCD, 480 × 854 resolution |
| CPU | 4-core, 1.3GHz — Android 6.0 |
| RAM / Storage | 1GB RAM / 16GB ROM |
| Battery | 1500mAh / 3.7V |
| Operating Voltage | 9V – 18V |
| Working Temperature | 0°C – 50°C (32°F – 122°F) |
| Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
| Dimensions | 221 × 133 × 37mm |
| Cable Length | 1200mm (47.24") |
| Net Weight | 630g |
| System Diagnostics | 4 systems — Engine, Transmission, Airbag, ABS |
| Reset Functions | 9 — Oil, Brake, SAS, BMS, Injector Coding, DPF, ETS, TPMS, ABS Bleeding |
| Vehicle Coverage | 80+ US, European and Asian brands — 1996+ OBD2 |
| Protocol Support | Standard OBD2 + CAN-FD (GM/Chrysler/Fiat 2020+) |
| Software Updates | Lifetime free via Wi-Fi |
| Special Functions | AutoVIN, 4-stream live data, data recording, auto report, quick feedback |
Before You Buy – Important Information
- Covers 4 main vehicle systems — Engine, Transmission, Airbag and ABS
- Includes 9 service reset functions — Oil, Brake, SAS, BMS, Injector Coding, DPF, ETS, TPMS and ABS Bleeding
- Software updates are lifetime free via Wi-Fi — no subscription required
- Supports CAN-FD protocol for GM, Chrysler and Fiat 2020+ models
- AutoVIN automatically identifies your vehicle — no manual entry needed
- Not all reset functions are compatible with all vehicles — contact us with your VIN to verify
- Compatibility is for reference only — confirmed through live vehicle testing
