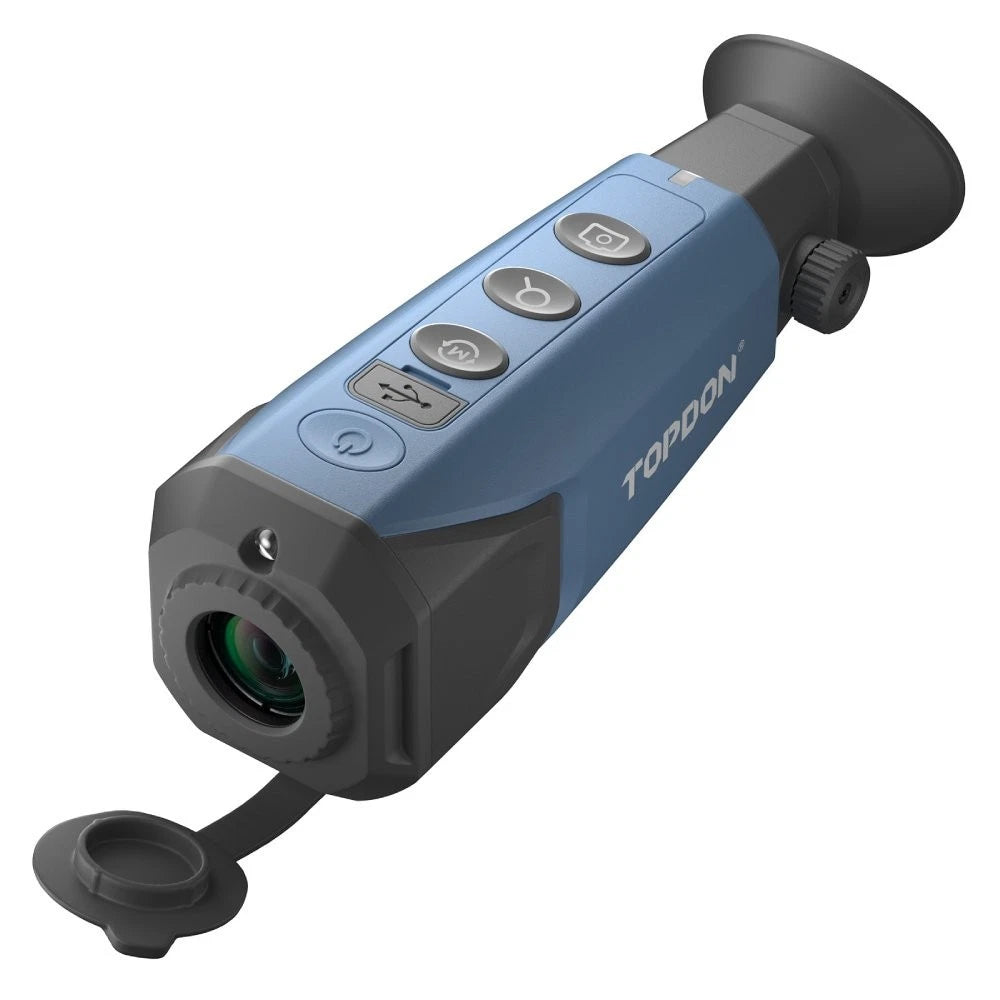

TOPDON TS004 Pro Thermal Imaging Monocular

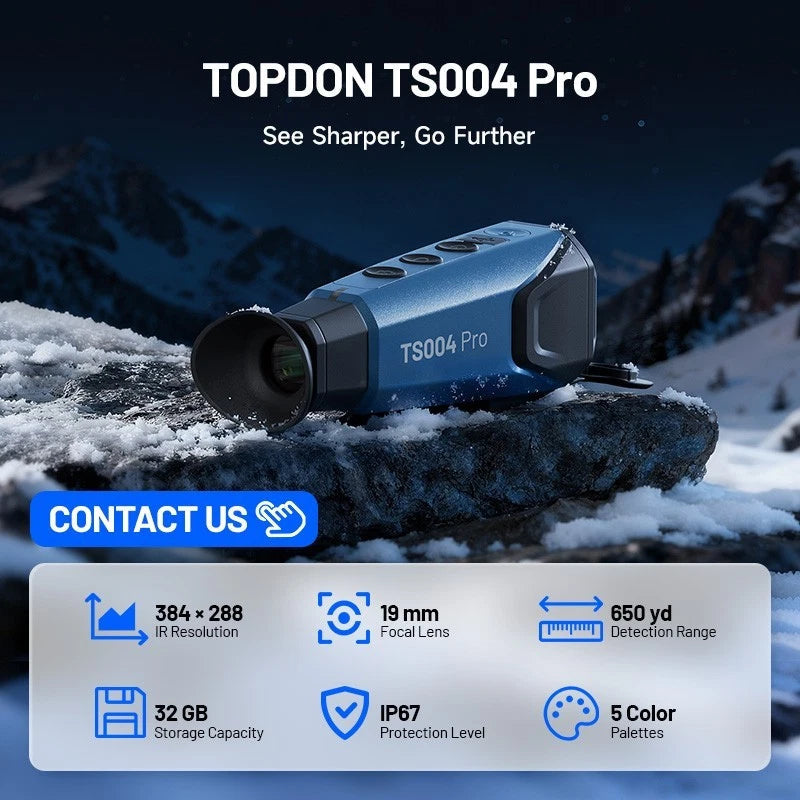

Professional Thermal Imaging Monocular with 384×288 Resolution, 650-Yard Detection & TISR Image Enhancement
See Further. Detect More.
The TOPDON TS004 Pro Thermal Imaging Monocular is engineered for hunters, wildlife observers, search & rescue teams, security professionals, and outdoor enthusiasts who demand sharper thermal images and longer detection distances. Equipped with a 384 × 288 infrared sensor, 19mm objective lens, and TISR (Thermal Image Super Resolution) technology, the TS004 Pro delivers exceptional image clarity with a detection range of up to 650 yards (594m), even in total darkness, fog, smoke, or dense vegetation.
Key Features
🔥 TISR Enhanced Thermal Imaging

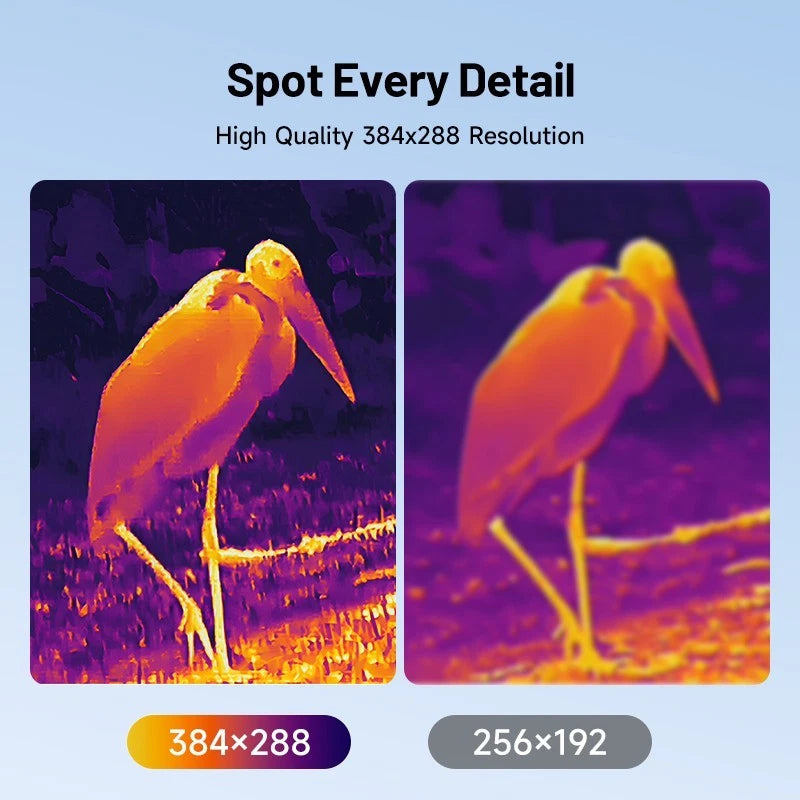

Experience sharper thermal images with 384×288 IR resolution and TISR image enhancement for improved target recognition.

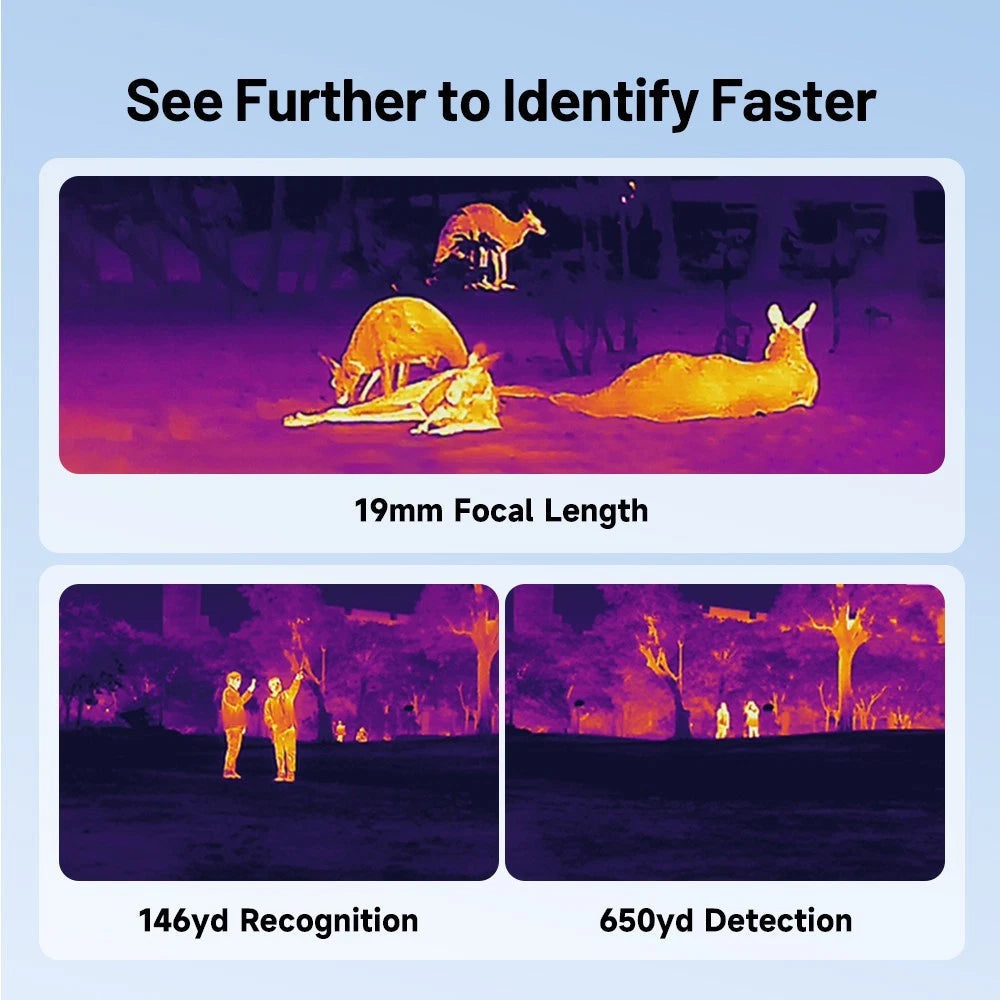

🎯 650-Yard Detection Range
Detect animals, people and heat sources from up to 650 yards (594m) with a recognition range of 146 yards (133m).

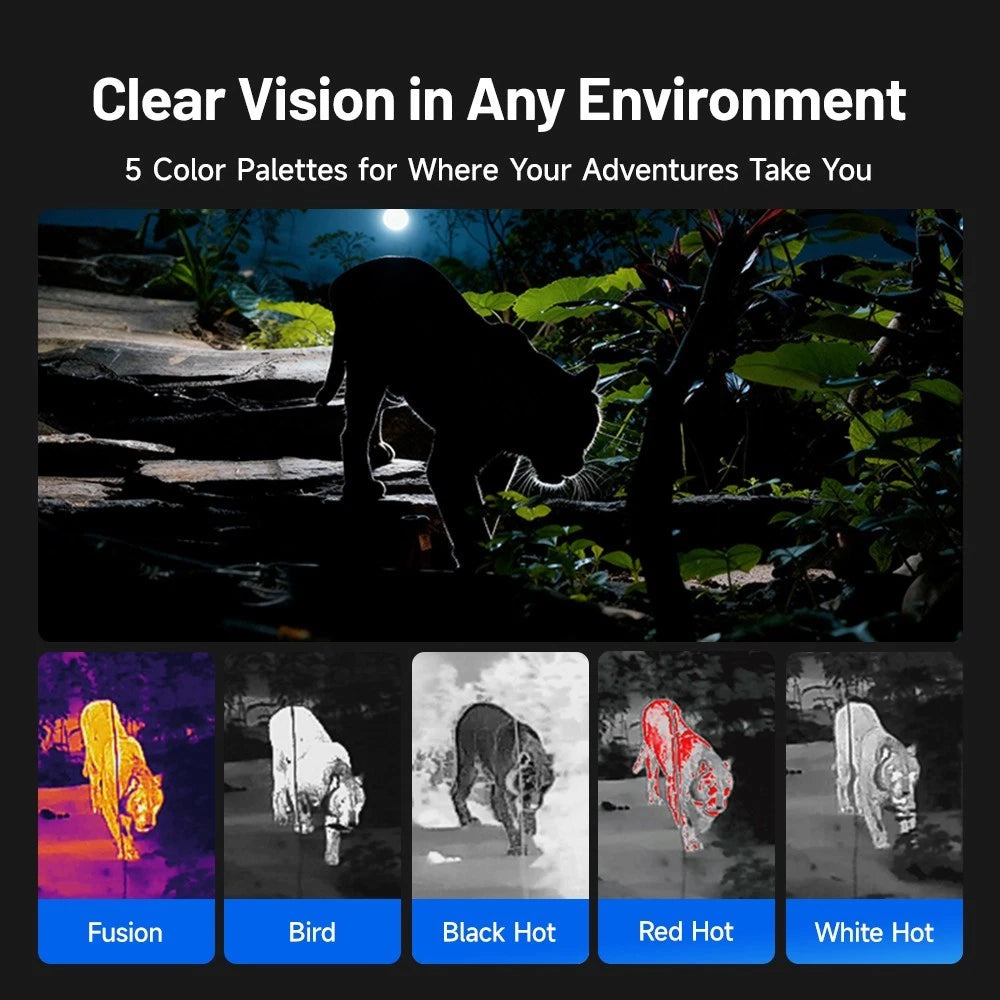

🌈 Five Colour Palettes
Select Bird, White Hot, Black Hot, Red Hot or Fusion mode for optimal visibility across different environments.

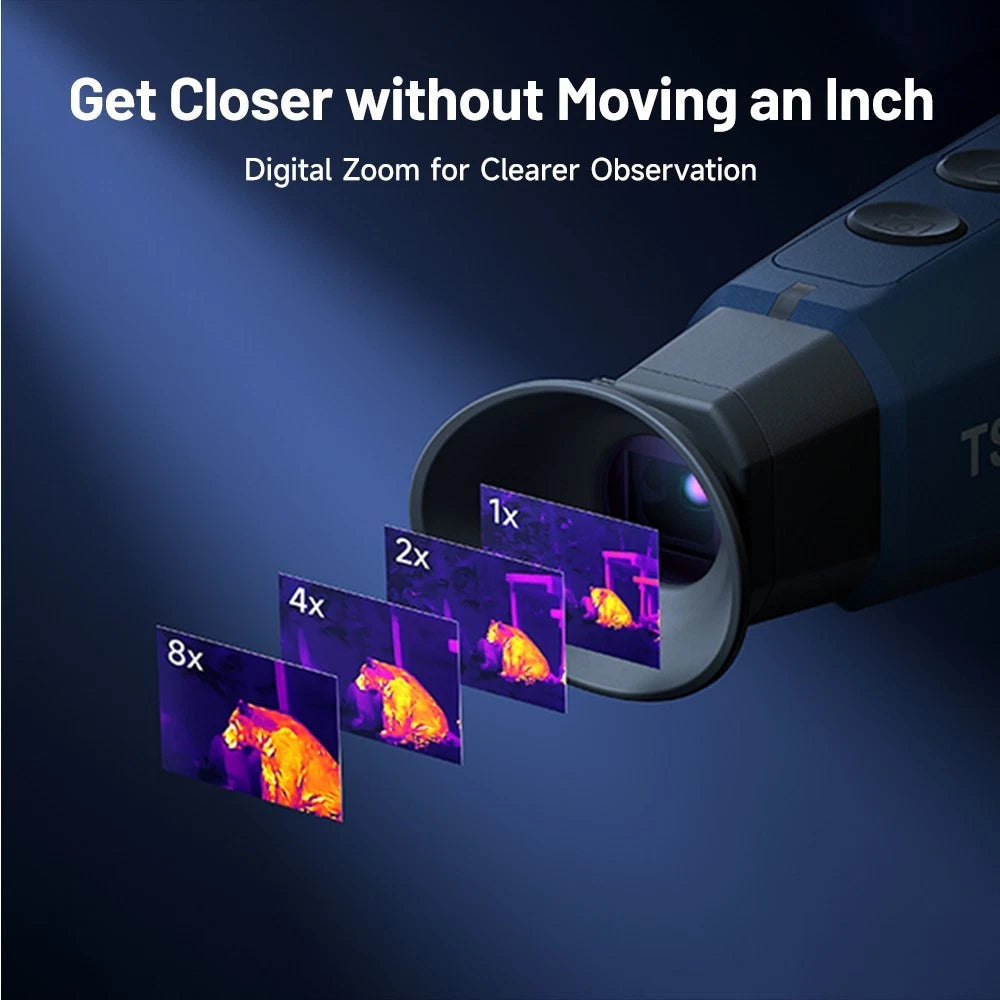

🔍 PIP & 8× Digital Zoom
Choose 1×, 2×, 4× or 8× digital zoom and activate Picture-in-Picture mode for precise target observation.
🔋 10-Hour Battery Life
The powerful 5000mAh rechargeable battery delivers up to 10 hours of continuous operation for extended field use.

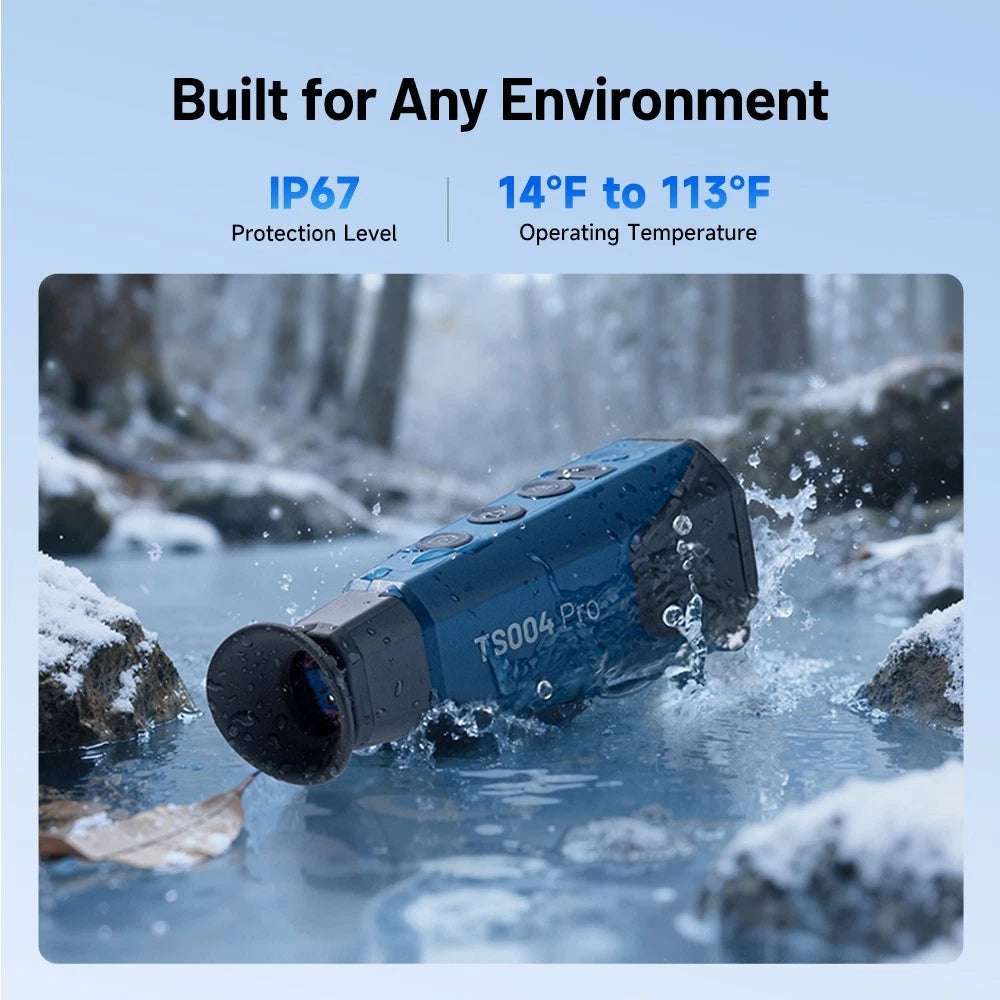

💧 IP67 Rugged Protection
Designed to perform in rain, snow, dust and demanding outdoor environments with professional IP67 waterproof protection.
Wireless Control & OTA Updates
Connect to the TopInfrared App via Wi-Fi for remote control, live viewing, image capture and video recording. OTA firmware updates keep your TS004 Pro optimized with the latest features and performance improvements.
Ideal Applications
- Wildlife Observation
- Professional Hunting
- Search & Rescue
- Farm & Livestock Monitoring
- Camping & Hiking
- Night Patrol & Security
- Property Inspection
- Outdoor Exploration

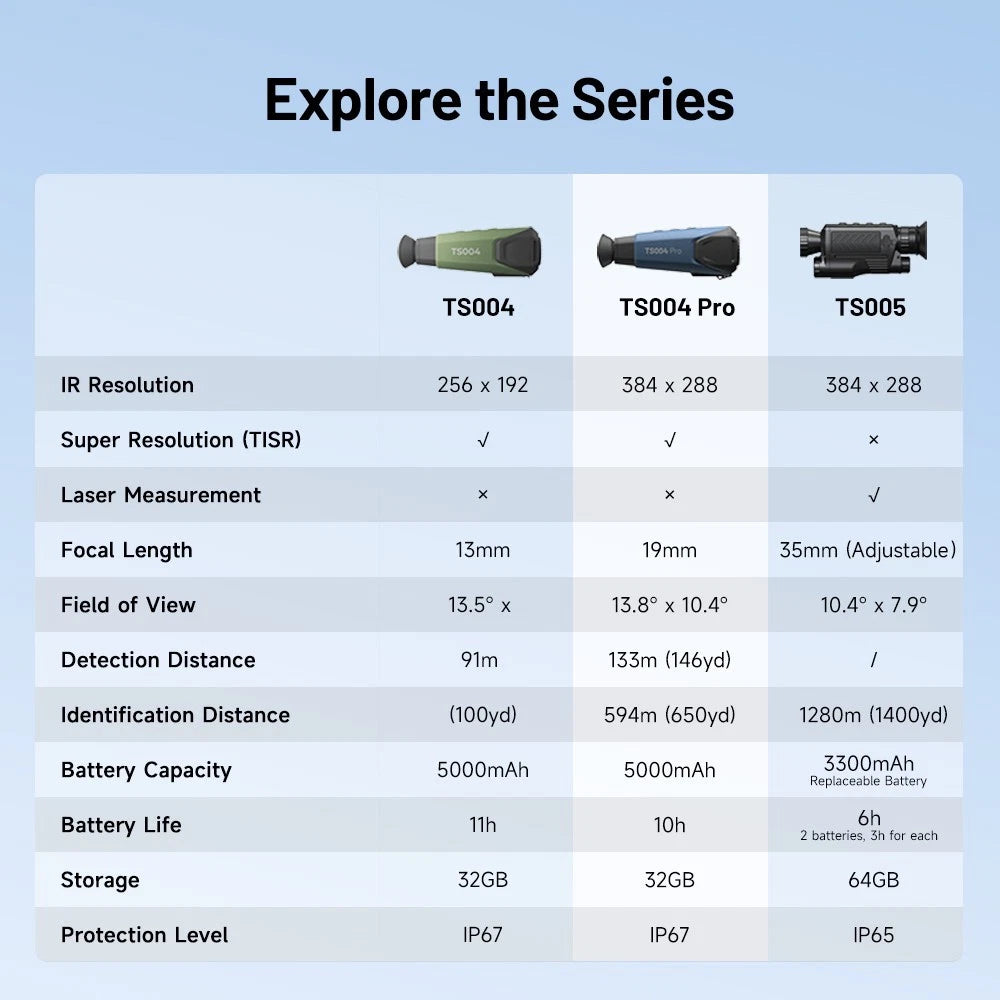

TS004 vs TS004 Pro
| Feature | TS004 | TS004 Pro |
|---|---|---|
| IR Resolution | 256 × 192 | 384 × 288 |
| Detection Range | 410 m | 594 m |
| Recognition Range | 91 m | 133 m |
| TISR Image Enhancement | — | ✔ |
| Picture-in-Picture | — | ✔ |
| Best For | General Outdoor Use | Professional Hunting & Long-Range Observation |
Technical Specifications
| Specification | Details |
|---|---|
| Thermal Resolution | 384 × 288 |
| Lens | 19 mm |

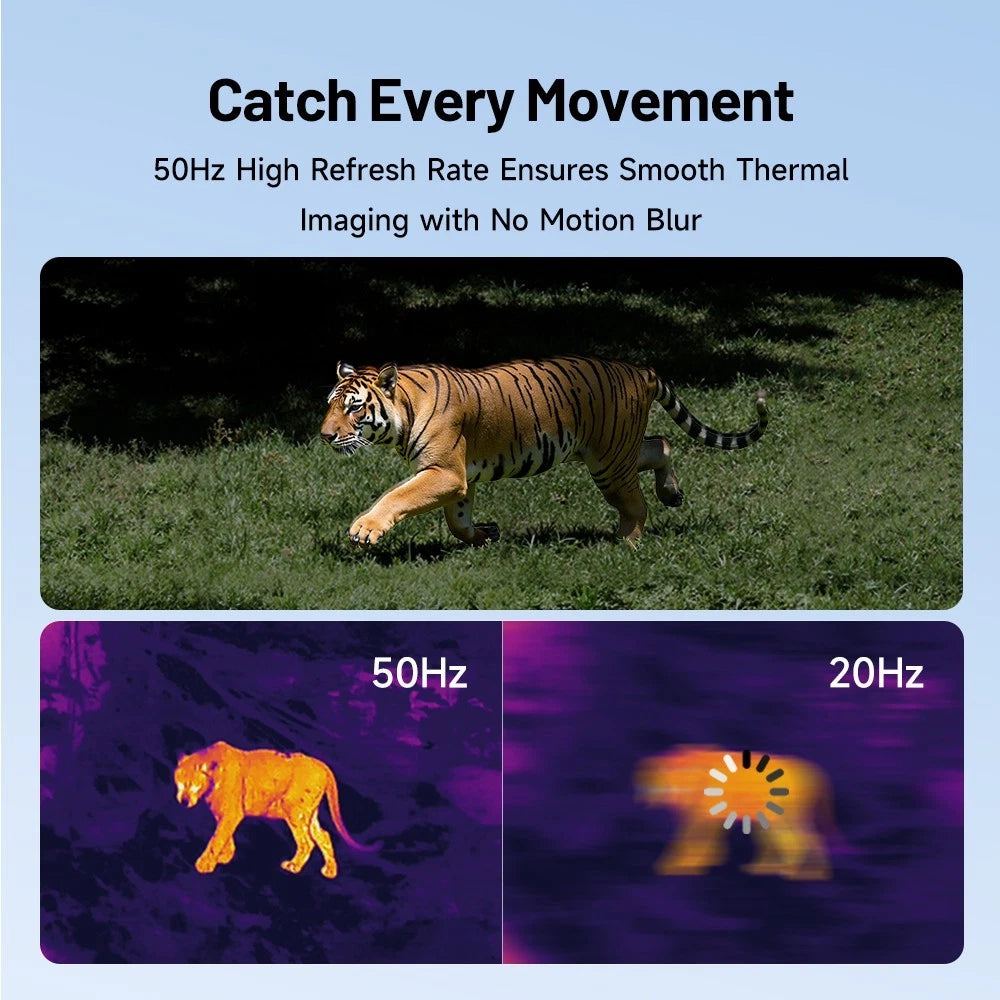

| Frame Rate | 50 Hz |
| Detection Distance | 650 yd (594 m) |
| Recognition Distance | 146 yd (133 m) |
| Digital Zoom | 1× / 2× / 4× / 8× |
| Battery Capacity | 5000 mAh |
| Battery Runtime | Up to 10 Hours |

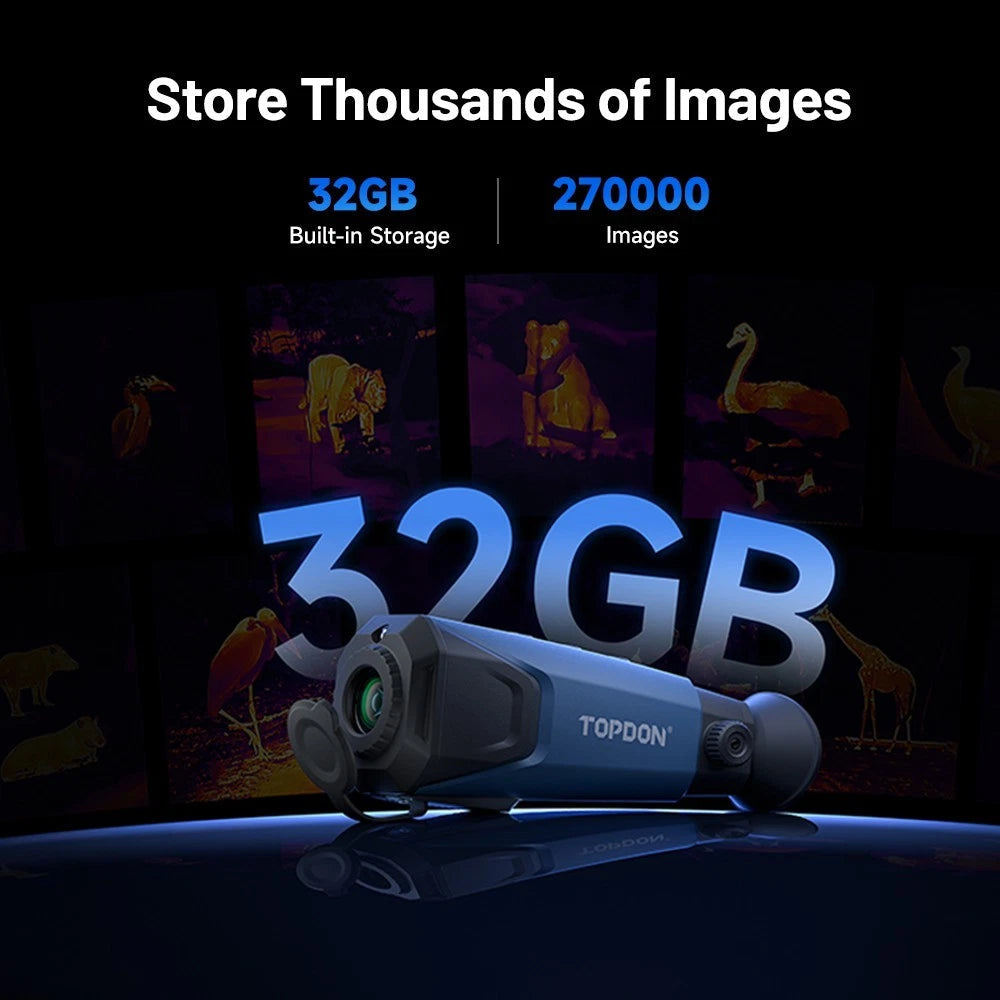

| Storage | Built-in 32 GB |
| Protection Rating | IP67 |
| Operating Temperature | -10°C to 45°C (14°F to 113°F) |
| Dimensions | 180 × 64 × 54 mm |
| Net Weight | 310 g |
| Package Weight | 620 g |

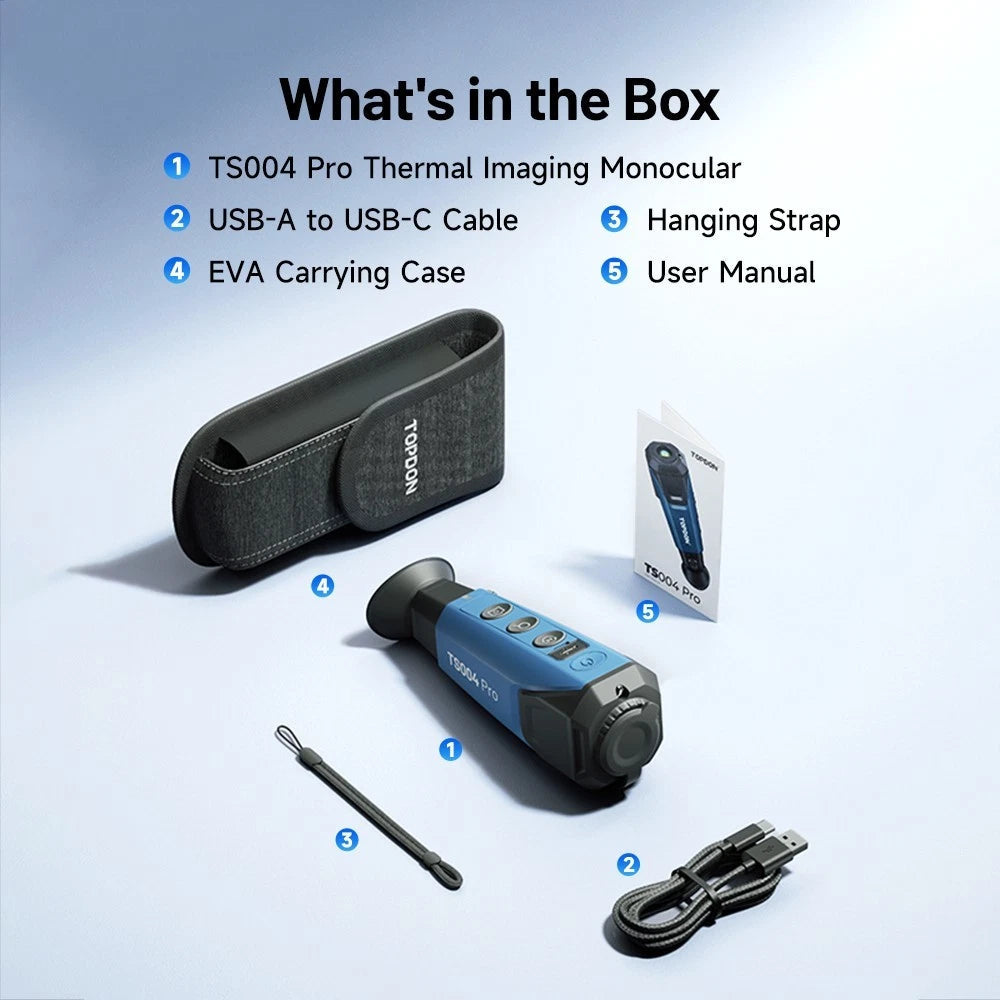

What's in the Box
- ✔ TOPDON TS004 Pro Thermal Imaging Monocular
- ✔ USB-A to USB-C Charging Cable
- ✔ Hanging Strap
- ✔ EVA Carrying Case
- ✔ User Manual
Why Choose TS004 Pro?
Compared with entry-level thermal monoculars, the TOPDON TS004 Pro offers significantly higher image resolution, longer detection distance, TISR image enhancement, Picture-in-Picture viewing and professional-grade outdoor durability. It's the ideal thermal imaging monocular for hunting, wildlife observation, farm management, security patrols and search & rescue missions.
